1、Cloud validation new experience
2、Online validation of two-dimensional code validity
3、Optional support for M1 card and ID card.
4、WeChat, APP sweep two-dimensional code open door
5、Shake the key and open the door.

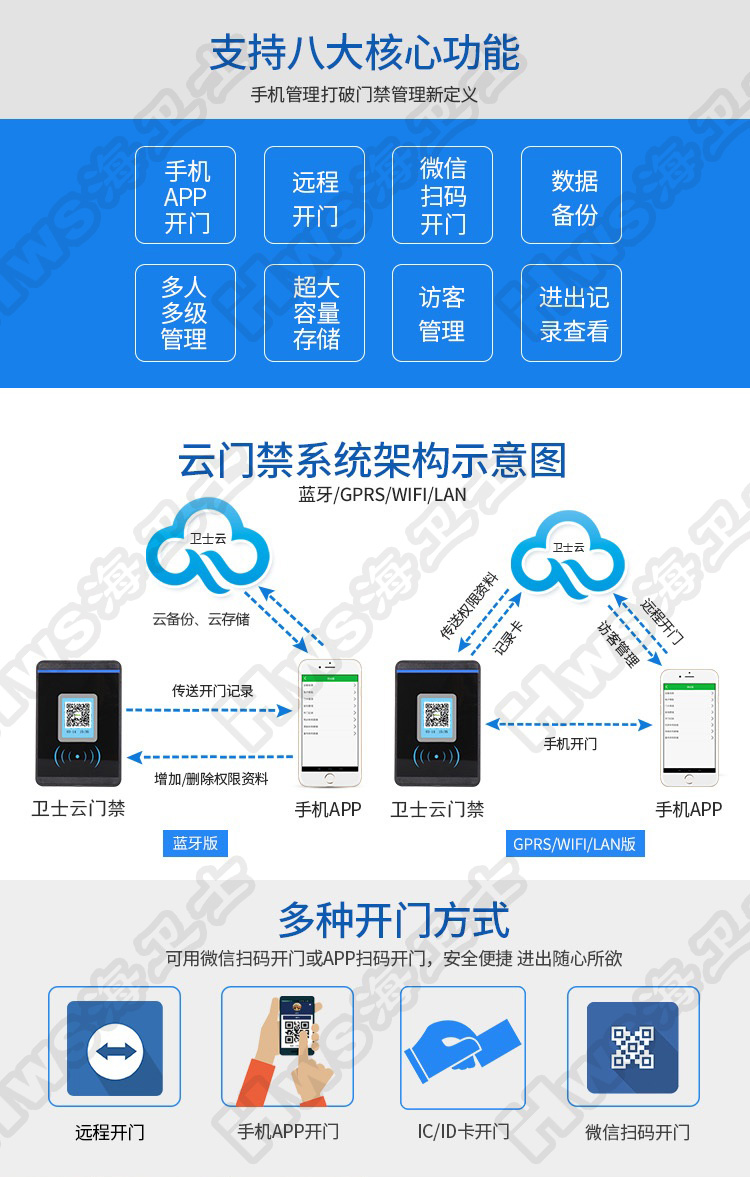

| [Working mode]: | APP Bluetooth 4.0 Open, Wechat, APP sweep two-dimensional code open, IC / ID card open, APP remote open, optional reading mode |
| [Bluetooth sensing distance]: | <20m, can be configured according to actual needs |
| [Bluetooth induction speed]: | <2s |
| [IC/ID card sensing distanc]: | <6cm |
| [IC/ID card response time]: | <1s |
| [support door]: | single door, one way lock output |
| [working voltage]: | DC12V |
| [working current]: | <200mA |
| [working temperature]: | -10~70℃ |
| [work humidity]: | 10%~90% |
| [number of switch door]: | >20 million |
| [optional header output]: | Optional card reader for WG26 and WG34 output. |

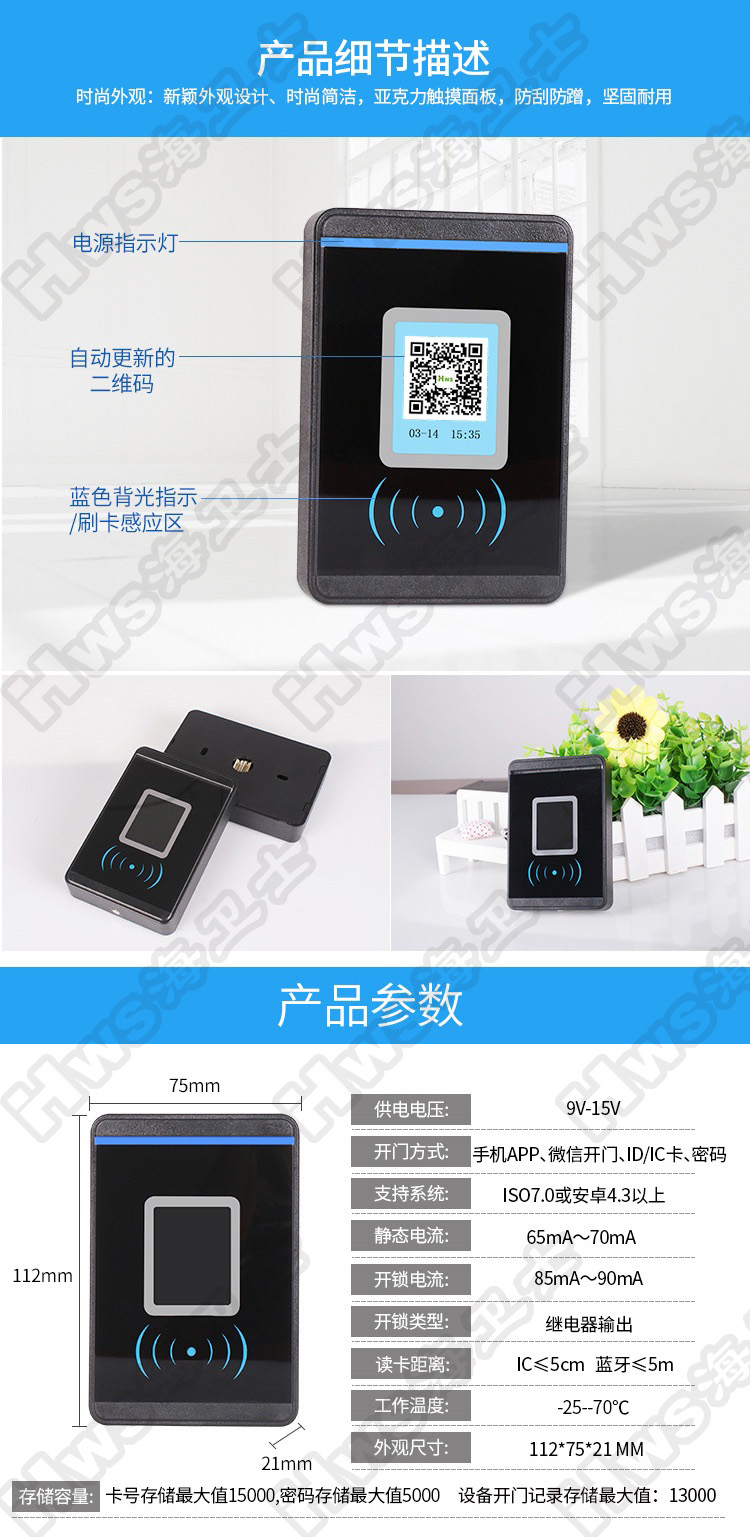

| [shape size]: | 114*76*21 (mm) (length * width * height) |
